2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m

Product Categories

Planetary Geared Stepper Motor [60]
Screw Linear Stepper motor [43]
Closed Loop Stepper Motor [14]
Worm Geared Stepper Motor [8]
High Precision Geared Stepper Motor [20]
Hybrid Stepper Motor [18]
Hollow Shaft Stepper Motor [9]
Non Captive Linear Stepper Motor [9]
Stepper Motor Driver [5]

Chongqing Umot Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m

Name: 29325V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 MaxRatio 270380mNm
Brand: Umot
Price: 40.19 USD

Quality 2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m wholesale

Warranty : 3months-1year

Place of Origin : Chongqing, China

Brand Name : Umot

Model Number : 42HS

Phase : 2

Type : Hybrid

Current / Phase : 1.33A/1.5A

Product name : Geared Stepper Motor

Motor size : Nema 17

Motor length : 34/40mm

Torque for gearbox : 0.902N.m-10.0N.m

Reduction ratio : 3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1

Rated Current : 1.33/1.5A

Rated Voltage : 2.93/2.5V

Rotor Inertia : 30/40g.cm2

Efficiency : 66%-90%

Certification : CE, RoHS

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

MOQ : 5 pieces

Price : $40.19/pieces 5-99 pieces

Contact Now

2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m

High Torque Mini Geared Stepper Motor Nema 17 With Gear 12v Hybrid Micro Nema 17 Stepper Motor With Gearbox

Planetary Gear Stepping Motor:
Precision high-end upgrade with Nema8, Nema 11, Nema14, Nema 17, Nema23, Nema 24
stepper motor; low noise , low vibration , firm and durable. Increase torque at low speed.
Reduction ratio：1:3.7 ， 1:5.2 ， 1:14 ， 1:19 ，1:27 ，1:51 ， 1：71 ，1:100 ，1:139 ， 1:189 ，1:264 ， 1:369 ，And 48 hours delivery , in stock .
Application:
Automation control, medical equipment, textile machinery,and packaging machinery fiels. Not only in the field of automation industry, it also has a good use status in the home. Products with low speed and inertia are often seen: electric curtains,electric shutters, etc.

Ring material	Metal
Bearing at output	Ball bearing
Max.Radial load	200N
Max shaft axial load	100N
Radial play of shaft	less than or equal to 0.06mm
Axial play of shaft	less than or equal to0.3mm
Backlash at no-load	first-level ≦1°，Secend ≦1.2°，Third ≦1.5°

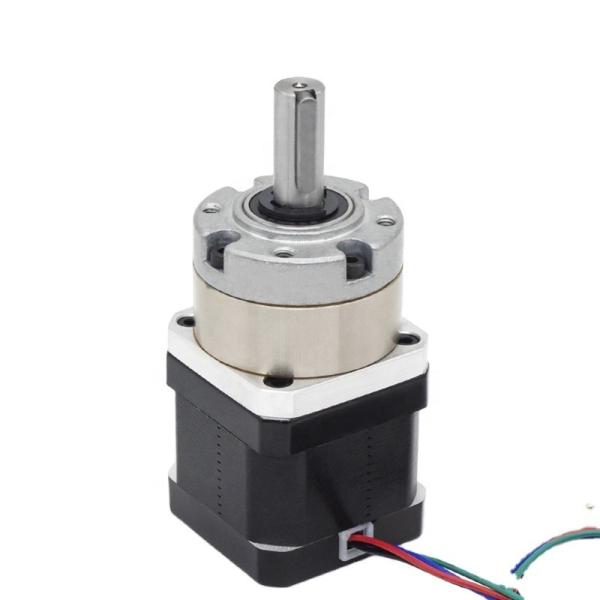

2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m Images
