Nema 8 Micro Planetary Geared Stepper Motor 30/41mm Length 1 369 Reduction Ratio

Product Categories

Chongqing Umot Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Nema 8 Micro Planetary Geared Stepper Motor 3041mm Length 1 369 Reduction Ratio
Brand: Umot
Price: 39.42 USD

Place of Origin : Chongqing, China

Brand Name : Umot

Model Number : 20HS1405/6401

Certification : CCC Ce RoHS

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

MOQ : 5 pieces

Price : $39.42/pieces 5-99 pieces

Warranty : 1year

Phase : 2

Type : Hybrid

Current / Phase : 0.5/0.8A

Product name : Nema 8 Planetary Gearbox Stepper Motor

Motor length : 20mmX30mm/ 20x41mm

Load range : 0.6N.m-2.0N.m

Weight : 0.06/0.1kg

Bearing at output : Ball bearings

Number of gear trains : 1-4

Current : 0.5/0.8A

Reduction ratio : 3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1

Efficiency : 66%-90%

Contact Now

Small Size 20mm Mini Gear Reducer Nema 8 Planetary Gearbox Geared Stepper Motor With Gear Reducer

Product Name	Nema 8 Planetary Gearbox Stepper Motor
Warranty	3months-1year
Place of Origin	China
Brand Name	Umot
Model Number	20HS1405/6401
Phase	2 Phase
Type	Hybrid
Rated Current	0.5/0.8A
Certification	CCC, ce, ISO
Motor size	20mmX20mm
Load range	0.6N.m-2.0N.m
Color	Silver
Bearing at output	Ball bearings
Number of gear trains	1-4
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Efficiency	66%-90%

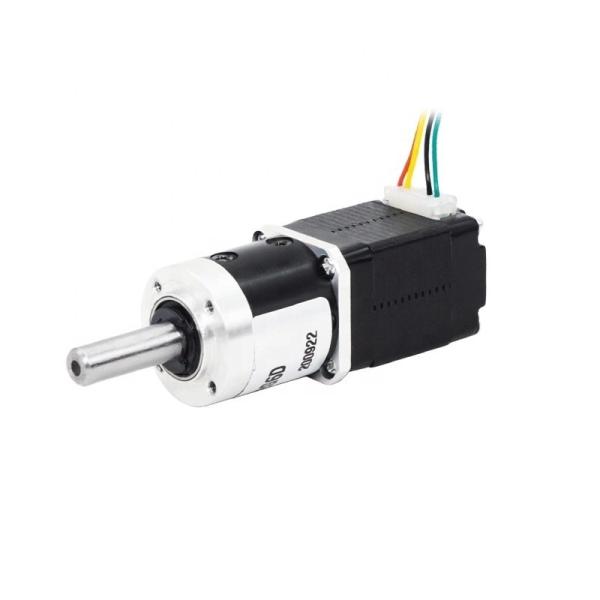

Nema 8 Micro Planetary Geared Stepper Motor 30/41mm Length 1 369 Reduction Ratio Images
