Warranty : 3months-1year, 1 year warranty
Place of Origin : Chongqing, China
Brand Name : UMot
Model Number : Nema 8/11/14/17/23/34 stepper motor
Phase : 2
Type : Hybrid
Current / Phase : 0.6A-4A
Product name : Nema 8/11/14/17/23/34 Stepper motor
Frame size : 20mm/28mm/35mm/42mm/57mm/86mm
Lead wire : 4
Shape of motor shaft : single
Environment temperature : -20 ℃-+120℃
Certification : CCC, ISO9001, CE, Rohs, CCC, CE, ISO, RoHS
Packaging Details :
Thickened high quality pearl cotton
Excellent seismic performance
MOQ : 2 sets
Price : $10.00 - $30.00/sets
Brand Name | Umot |
Model Number | 20HS1401 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 0.6A |
Certification | CCC, ce, RoHS |
Step Angle | 1.8° |
Flange size | 20mm |
Environment temperature | -20 ℃-+120℃ |
Temperature rise | 80℃max |
Current | 0.6A |
Motor length | 30mm |
Axial load | 2N |
Radial load | 20N |
Weight | 0.05kg |
Rated Voltage | 3.9V |
![]() |

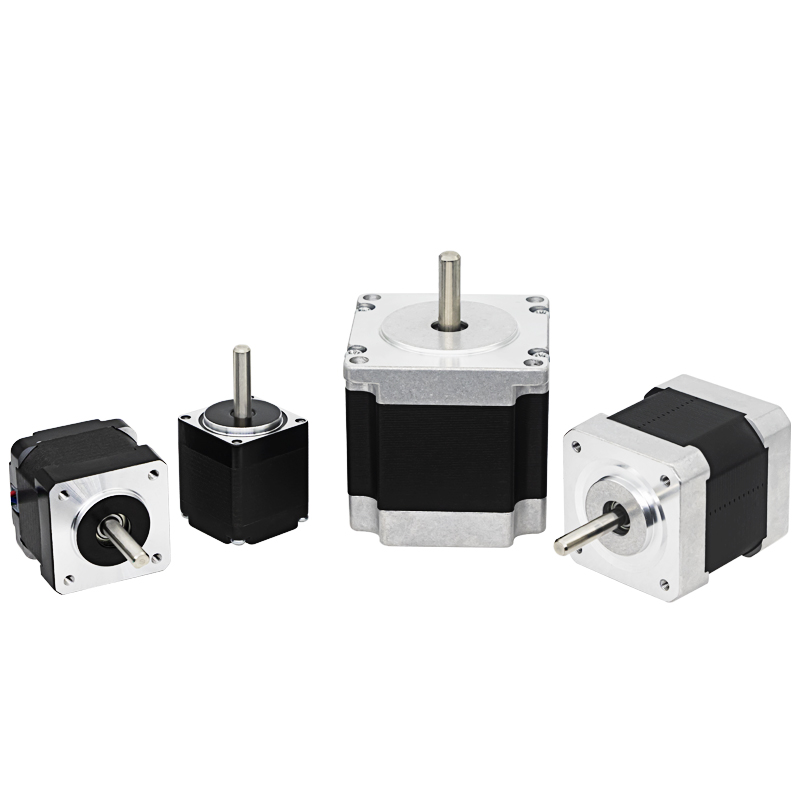

Nema 8/11/14/17/23/34 Hybrid Stepper Motor for High Temperature Environment Temperature Images |
